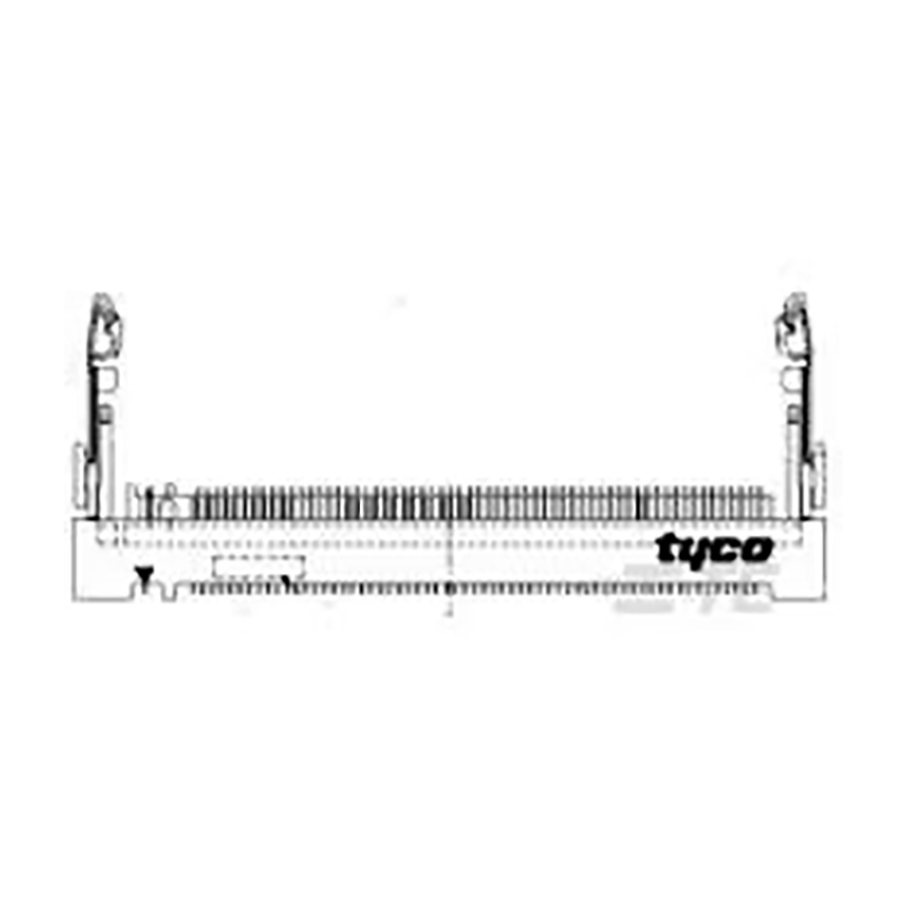

1717831-1
Manufacturer:
TE Connectivity
Mfr.Part #:
1717831-1
Datasheet:
Description:
Edgeboard Connectors SMD/SMT Female Right Angle Number of Positions:52
| Parameter | Value |
|---|---|
| Length | 30 mm |
| Width | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Height | 7.7 mm |
| Packaging | Tray |
| Depth | 9.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper Alloy |
| Pitch | 800 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 52 |
| Connector Type | Receptacle |
| Number of Positions | 52 |
| Number of Rows | 2 |
| Row Spacing | 6.1976 mm |
| Insulation Material | Thermoplastic |
| Card Thickness | 1 mm |
| Housing Material | Thermoplastic (TP) |
| Housing Color | Black |
| PCB Mounting Orientation | Horizontal |
| High Temperature Housing | Yes |
| Stackable | No |
| Stack Height | 4 mm |
| Sealable | No |
| Mounting Angle | Right Angle |
| Card Type | PCI Express Mini Card |
Stock: 1537
Distributors
pcbx
pcbxUnit Price$2.33396
Ext.Price$2.33396
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.33396 | $2.33396 |
| 10 | $2.32768 | $23.27680 |
| 25 | $2.32141 | $58.03525 |
| 50 | $2.31516 | $115.75800 |
| 100 | $2.30893 | $230.89300 |
| 300 | $2.30271 | $690.81300 |
| 500 | $2.29651 | $1148.25500 |
| 1000 | $2.29036 | $2290.36000 |
